Product Summary

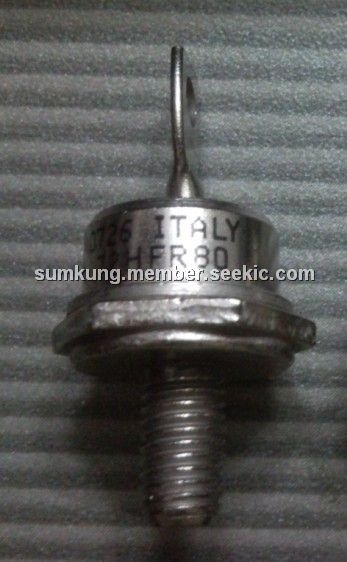

The 72HFR80 is a 70A standard recovery diode. It is used in Converters, Power supplies, Machine tool controls, Battery charges.
Parametrics
72HFR80 absolute maximum ratings: (1)IF(AV): 70 A; 140℃ at Tc; (2)IF(RMS): 110 A; (3)IFSM: 1200A AT 50 Hz; 1250A at 60 Hz ; (4)I2t: 7100A2s at 50 Hz; 6450A2s at 60 Hz; (5)VRRM: 100 to 1200 V; (6)TJ: - 65 to 180℃.
Features
72HFR80 features: (1)High surge current capability; (2)Designed for a wide range of applications; (3)Stud cathode and stud anode version; (4)Leaded version available; (5)Types up to 1600 V VRRM; (6)RoHS compliant; (7)Designed and qualified for industrial level.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 72HFR80 |
|
DIODE 800V 70A DO-5 W/REVERSE P |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
72HF80 |
|
DIODE 800V 70A DO-5 |
Data Sheet |
|
|
||||||
|
72HFR80 |
|
DIODE 800V 70A DO-5 W/REVERSE P |
Data Sheet |
|
|
||||||
