Product Summary
The 112-014-213R001 is a 085 inch Ribbon Type Connector with 4-40 Threads.
Parametrics
112-014-213R001 absolute maximum ratings: (1)Housing Color Blue; (2)Lead-Free Status Lead Free; (3)Current Rating 5.00 A; (4)Contact Material Copper Alloy; (5)Number of Positions 14; (6)Mounting Type Through Hole; (7)Flammability Rating UL 94 V-0; (8)RoHS Compliant; (9)Contact Plating Gold Flash.
Features
112-014-213R001 features: (1)Available in 4 industry sizes/positions (14, 24, 36, 50); (2)D-shape polorized mating face; (3)Recepticle bail latches included with connector; (4)Rugged design and quick release have proven effective in areas of repeatable cycling.

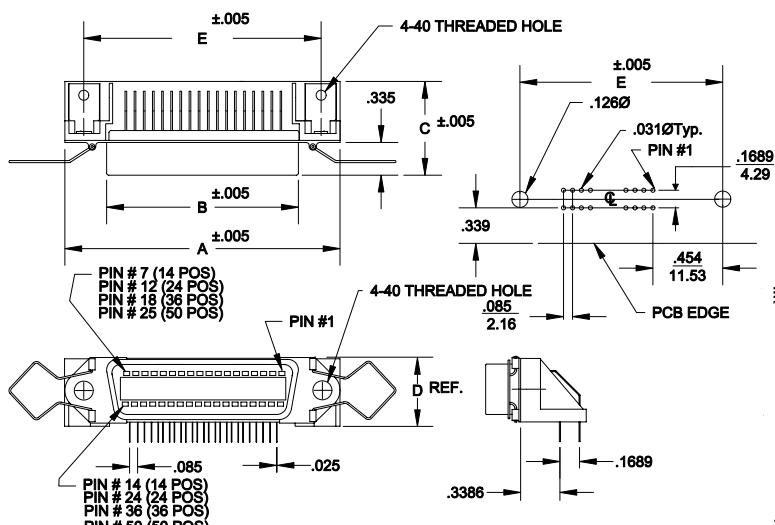

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 112-014-213R001 |
NorComp |
I/O Connectors 14P Centronics fem R/A dip solder |
Data Sheet |
|
|
||||||||||||
